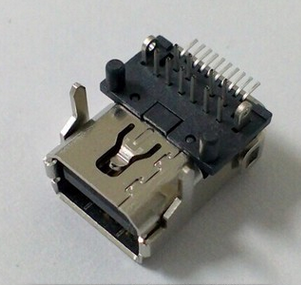

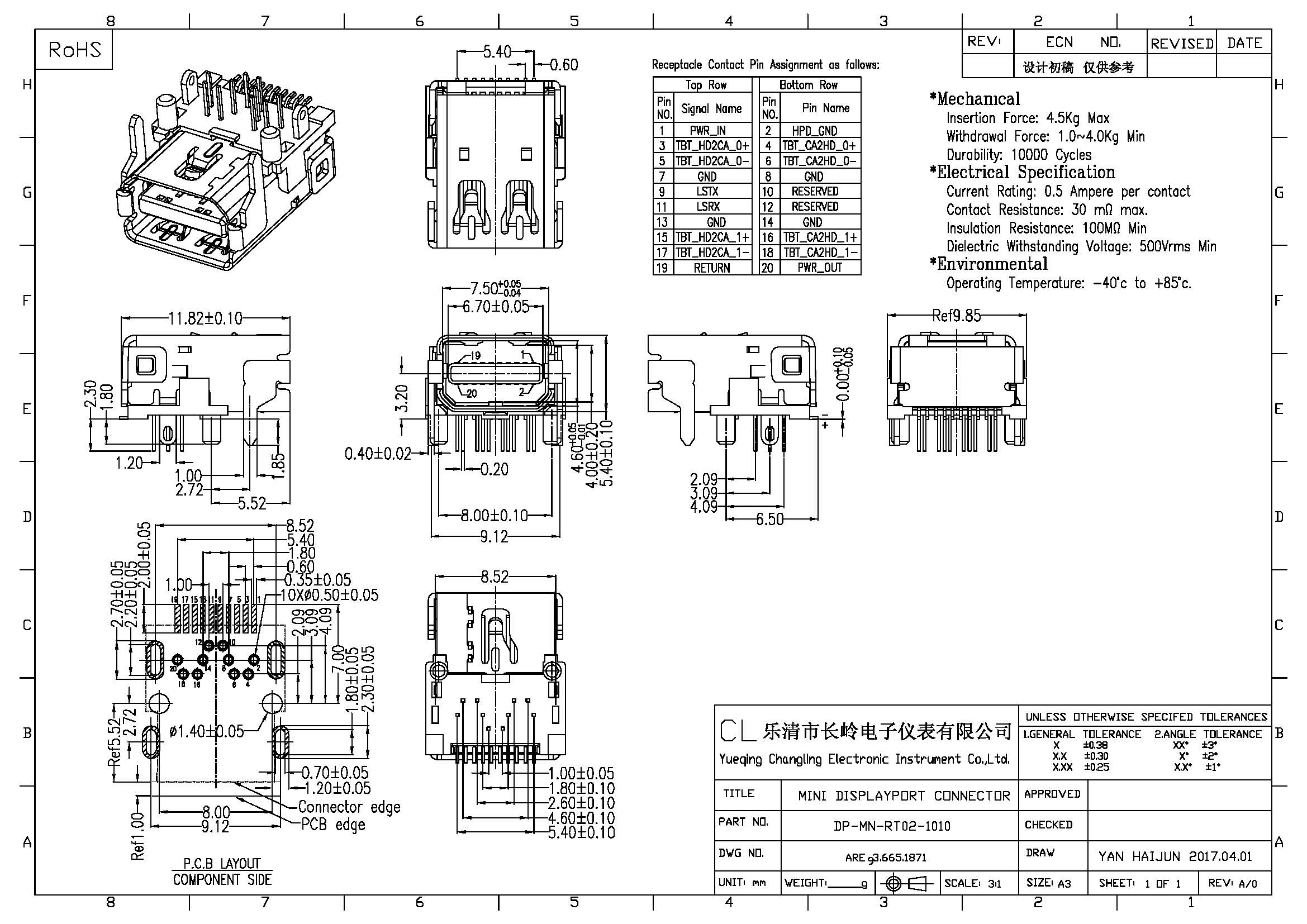

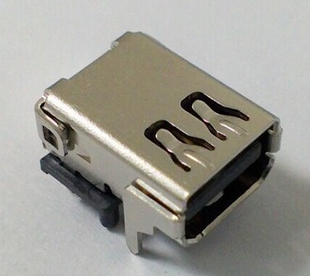

Mini DP 20Pin receptacle top-mount CH=3.2mm Hybrid type
所属分类:Mini Displayport

产品型号:DP-MN-RT02-1010

点击次数:50

打印当前页

放入收藏夹


NOTES:
1.MATERIAL SPECIFICATION
 1-1.HOUSING: LCP+30% G.F BLACK UL94 V-0.
 1-2.CONTACT: BRASS(C2680R-H) T=0.20mm.
 1-3.SHELL: STAINLESS STEEL(SUS304R-1/2H) T=0.40mm.
2.PLATING SPECIFICATION
 2-1.CONTACT: NI50u'' UNDER PLATED,GOLD FLASH PLATED ON THE
    FUNCTIONAL AREA OF CONTACT,GOLD PLATING OR TIN ON SOLDER AREA.
 2-2.SHELL: NICKEL PLATED.
3.MECHANICAL PERFORMANCE
 3-1.INSERTION FORCE: 44.1N (4.5 KGF) MAX.
 3-2.WITHDRAWAL FORCE: 4.9N~25N(0.5KGF~2.5KGF).
 3-3.DURABILITY: 5000 CYCLES.
4.ELECTRICAL PERFORMANCE
 4-1.CURRENT RATING: 0.5A.
 4-2.LLCR: CONTACT: 30 mΩ MAX(INITIAL), SHELL: 50 mΩ MAX(INITIAL).
 4-3.INSULATION RESISTANCE:
     A:UNMATED: 100 MΩ MIN. AT 500V DC.
     B:MATED: 10 MΩ MIN. AT 150V DC.
4-4.DIELECTRIC WITHSTAND VOLTAGE:
     150V AC/60S(MATED), 250V AC/60S(UNMATED).
5.IR REFLOW:
 THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
6.OPERATING TEMPERATURE RANGE: -25°C~85°C(WITHOUT LOSS FUNCTION).
7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
