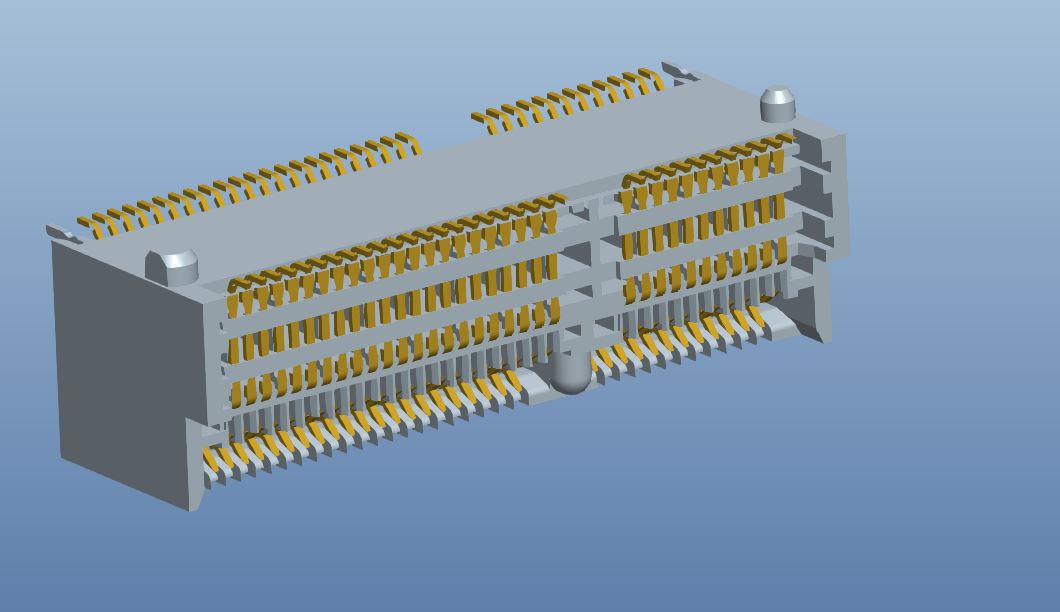

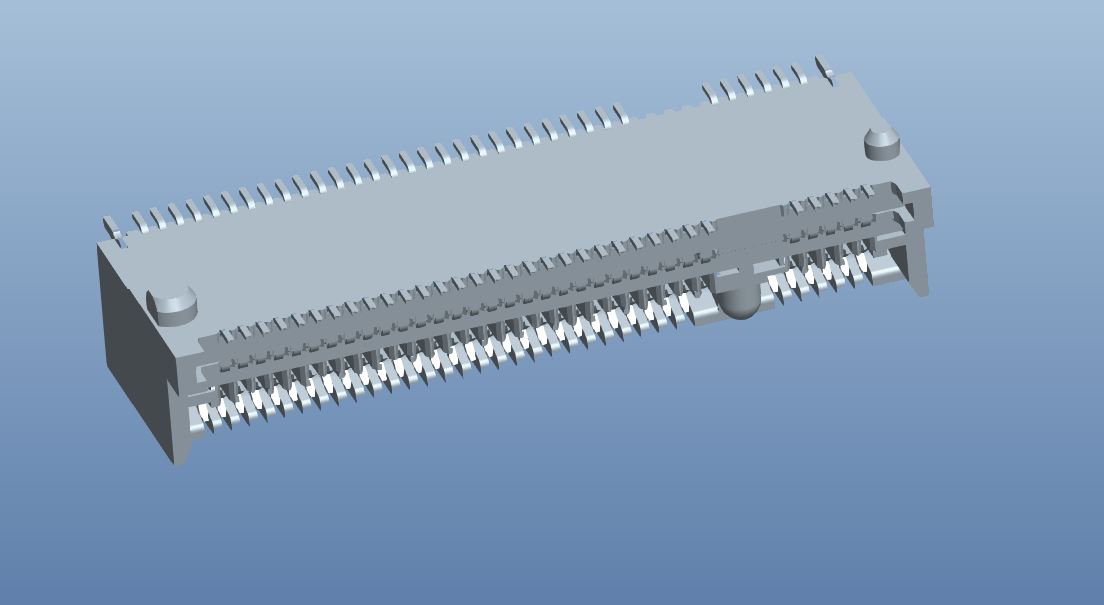

NGFF Socket (M.2 Connector) 6.4H, STD, E Key
所属分类:NGFF socket(M.2)

产品型号:NGFF-TR02-0010

点击次数:102

打印当前页

放入收藏夹




Notes:

 1. Materials
   a. Housing: LCP+30% GF,UL94 V-0(E471i);
   b. Contact: C5210-SH  T=0.15mm,
       Gold Plating at mating area(See P/N),
       100u" Min. Matte Tin plating at solder tail,
       all over Nickel(50u" Min.);
   c. LEG: C2680-EH T0.20mm, 100u" Min. Matte Tin plating over all,
          all over nickel(50u" Min.).
 2. RoHS 2.0 and HF compliant;
 3. Ratings
   a. Voltage Rating: 50V AC (Per pin);
   b. Current Rating: 0.5A (Per pin);
   c. Operating Temperature: -40°C ~ 80°C;
 4. Electrical Requirement:
   a. LLCR: 55mΩ Max,(Initial), 20mΩ Max. change allowed(Final);
   b. Dielectric Withstanding Voltage: 300V AC (RMS) for 1 minute;
   c. Insulation Resistance: 500MΩ Min. @ 500V DC;
 5. Mechanical Requirement:
   a. Mating Force: 20N Max.;
   b. Unmating Force: 20N Max.;
   c. Durability: 60 Cycles;
   d. Vibration: No electrical discontinuity greater than 1u sec shall occur;
   e. Mechanical Shock: 285G half sine / 6 axis,
             No electrical discontinuity greater than 1u sec shall occur;
 6. Resistance to heat:  the temperature shall be 260±5°C 10±1 seconds.
